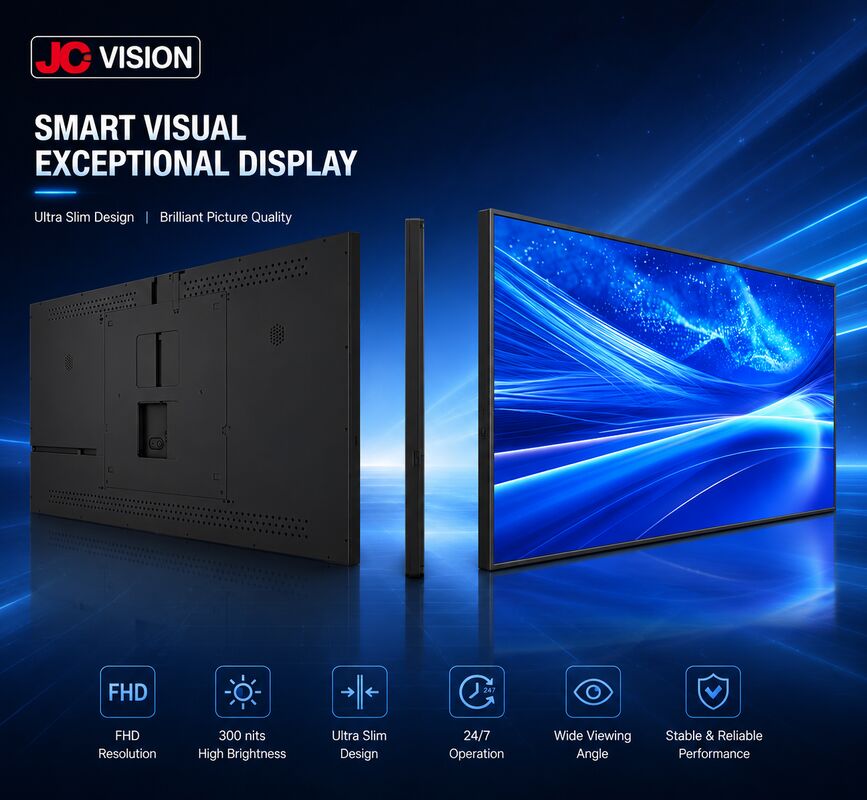

JCVision 32-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | JCVision |
| 인증: | CE ROHS |
| 모델 번호: | JC-32ILB |
| 문서: | JCVision 32-inch Light Box ....pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1 |
|---|---|
| 가격: | 600 |
| 포장 세부 사항: | 판지 상자 |
| 배달 시간: | 5-8일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 50 |
|
상세 정보 |
|||
| 상표: | 제이씨비젼 | 모델: | HD-352C |
|---|---|---|---|
| 제품명: | 32" 벽 조명 박스(사각형 가장자리 | 화면 크기: | 32 인치 |
| 백라이트 유형: | e-led | 해결: | 3840×2160(4K UHD) |
| 종횡비: | 16:9 | 시야각: | 89° / 89° / 89° (L/R/U/D) |
| 디스플레이 색상: | 16.7M | 명도: | 300 ± 20cd/m² |
| 명암비: | 1200:1 | 응답 시간: | 6명의 부인 |
| 활성 디스플레이 영역: | 698.40 × 392.85mm(H × V) | 칩셋: | Hisilicon Hi3751V352F 쿼드 코어, 최대 1.0GHz |
| GPU: | 말리-450 MP2 | 운영 체제: | 안드로이드 9.0 |
| 숫양: | 2GB | 저장: | 32GB |
| 디코딩 해상도: | 최대 4K @ 60Hz | 화상 회전: | 0° / 90° / 180° / 270° 수동 |
| USB 포트: | USB 2개 | HDMI: | 1 × HDMI 입력 |
| LVDS 인터페이스: | 1 × LVDS(단일/이중 채널, 6/8비트), 3.3V/5V/12V 지원 | 이더넷: | RJ45 100M 이더넷 |
| Wi-Fi: | 2.4G(802.11b/g/n) | 4G 모듈: | 선택 과목 |
| 백라이트 제어: | 온보드 12V 지원 | 영상 포맷: | MPEG4, MPEG2, MPEG1, WMV, TS, MOV, AVI, FLV 등 |
| 오디오 포맷: | WAV, MP3, AAC 등 | 이미지 형식: | JPEG, PNG, BMP, GIF 등 |
| 스피커: | 2×8Ω 3W | 전원 입력: | AC 100~230V, 50/60Hz |
| 전력 소비: | 120W 이하 | 순중량: | 8.0 Kg |
| 총중량: | 10.0 KG | 상자 크기: | 830×150×550mm |
| 제품 치수: | 725.80 × 420.30 × 29.20mm(벽면 장착 포함) | 설치: | 벽걸이형(가로/세로) |
| 작업: | 연중무휴 연속 사용 | ||
| 강조하다: | 32-inch indoor digital signage display,E-LED backlit wall mount light box,wide viewing angle signage for retail |
||
제품 설명
Product Name: JCVision 32-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)
Product Description:
Introducing the JCVision 32-inch Wall Light Box (Square Edge) – a compact yet powerful indoor digital signage solution perfect for retail stores, restaurants, hotels, and commercial environments where space is limited but visual impact matters.
The 32-inch E-LED backlit panel delivers 1920×1080 Full HD resolution with 300 cd/m² brightness, 1200:1 contrast ratio, and 89° ultra-wide viewing angles (L/R/U/D), ensuring clear and vibrant visuals from any direction. With a 6ms response time, it handles dynamic video content smoothly.
Powered by the Hisilicon Hi3751V352F quad-core chipset (up to 1 GHz) and Mali-450 MP2 GPU, the display runs on Android 9.0 with 2GB RAM and 32GB internal storage. It supports a wide range of video formats (MPEG4, MPEG2, WMV, MOV, AVI, etc.) and offers 1080P@60Hz video decoding.
Connectivity options include 2× USB, 1× HDMI IN, RJ45 Ethernet, and 2.4G Wi-Fi (802.11b/g/n). An optional 4G module is available for remote content management. The unit supports both horizontal and vertical wall mounting, making it ideal for digital menu boards, promotional displays, signage, and information kiosks.
Key Specifications:
-
Screen Size: 32 inch
-
Resolution: 1920×1080
-
Brightness: 300±20 cd/m²
-
Response Time: 6ms
-
OS: Android 9.0
-
RAM / Storage: 2GB / 32GB
-
Power: ≤120W
-
Dimensions (with wall mount): 725.80 × 420.30 × 29.20 mm
-
Weight: 8.0 kg (net)
![]()
