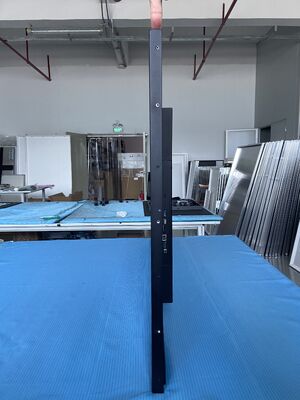

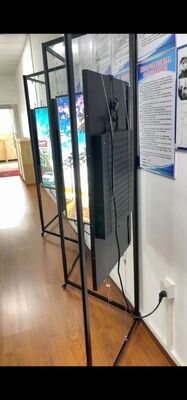

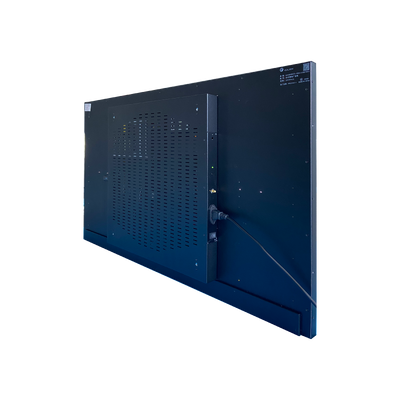

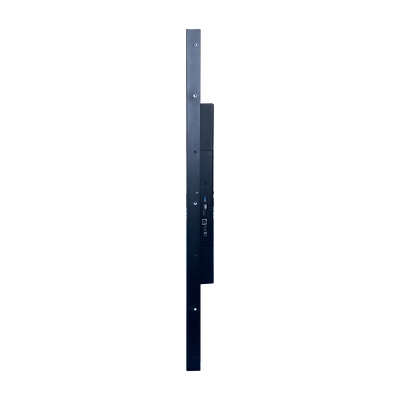

JCVISION 43inch Semi-outdoor High brightness display（single side or double side)
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | JCVISION |
| 인증: | CE/ROHS |
| 문서: | JCVISION 43inch Semi-outdoo...) .pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1 |
|---|---|
| 배달 시간: | 10일 |
| 지불 조건: | TT |
|
상세 정보 |
|||
| 응답 시간: | 6ms,8ms,5ms,14(통상)(Tr+Td),6.5ms | 유형: | TFT, LCD 디스플레이, 옥외 광고 Lcd 디스플레이 화면 Tv 디지털 간판 키오스크 |
|---|---|---|---|
| 명도: | 2000cd/m2,450cd/m2,2000nits,1500/m2,500cd/m2 | 애플리케이션: | 야외, 실내, 호텔, 공항, 전시회 |
| 입력 전압: | AC100~240V 50/60HZ,AC 110V~240V,50/60Hz,320W,AC100~240V 50-60HZ | 시야각: | 178 /178,89/89/89/89,178°/178°,178°V /178°H,89°/89°89°/89°(일반) |
| 픽셀 피치: | 0.4845(H)*0.4845(V),0.4845mm,0.831(H) x 0.831(V),0.08275*0.24825,0.0817(H) x 0.2451(V)mm | 보증: | 1년,1년,2년,3년,12개월 |
| 색상: | 16.7M, 블랙/실버/화이트, 또는 선택 사항, 색상, 블랙 | 패널 크기: | 42인치, 맞춤형, 55인치, 65인치, 230x105x35mm |
| 최대 해상도: | 1920*1080,1920(RGB)*1080(FHD),1080P,3840*2160 | 제품명: | 55인치 고휘도 옥외 디지털 간판 광고 디스플레이, 22인치 팬리스 패널 PC 컴퓨터, 65인치 대형 옥외 디지털 간판, 광고 디스플레이, 옥외 광고 화면 디지털 간판 옥외 |
| 판매 후 서비스 제공: | 비디오 기술 지원, 온라인 지원, 무료 예비 부품, 현장 설치, 시운전 및 교육 | CPU: | 2GHz,A83T,옥타 코어,ARM A17 쿼드 2.0GHz,듀얼 코어 |
| 터치스크린: | 멀티 포인트 포일 터치, 10포인트 정전식/ir 터치, 터치 포일(옵션), IR 터치(정전식/SAW 터치 옵션), 옵션 | 재료: | 금속 케이스 + 강화 유리 패널, 냉간 압연 강철, 금속 케이스 + 강화 유리, 1.2-1.5mm 금속판 |
| 설치: | 플로어 스탠딩, 플로어 스탠딩 또는 맞춤형 | 크기: | 42~65인치, 65인치, 65인치(다른 크기 사용 가능), 50인치, 17-84인치 옵션 |
| 운영 체제: | 안드로이드 5.1,안드로이드 4.4,X86 Windows7,CF/SD/USB,안드로이드(Windows 옵션) | ||
| 강조하다: | 43inch semi-outdoor digital signage display,high brightness outdoor display screen,double-sided outdoor digital signage |
||
제품 설명
JCVISION Technology Inc
43inch Semi-outdoor High brightness display
Features
u AppearanceAdopting an industrial-grade structural design concept, it features a one-piece molded frame, a slim and aesthetically pleasing body, simple installation and convenient maintenance, and a unique heat dissipation technology that supports 24/7 operation.
u High Definition: Utilizes an IPS high-definition LCD panel, featuring vibrant colors, high brightness, and supports up to 2160P video and image decoding playback, achieving high-quality image output.
u intelligent:Equipped with an intelligent input and display system, it features a wide range of mainstream ports, powerful audio and video decoding capabilities, automatic signal recognition, simple operation, and meets diverse usage needs.
u Scenarios: Supports horizontal/vertical installation, applicable to a wide range of scenarios, and is widely favored by government, education, finance, transportation, hotels, supermarkets, exhibition halls, medical, catering, and other industries.
u High-end: Combining numerous advantages such as aesthetics, high definition, explosion-proof, ease of use, commercial application, and intelligence, it is a high-end commercial display terminal device favored by many industries.
|
Trade Condition |
|
|||
|
Model No. |
JC-OW-S43A-NT |
|
||
|
Display parameters |
|
|||
|
LCD Grade |
New A+ LCD display panel |
|
||
|
Panel size |
43 inches |
|
||
|
resolution |
1920*1080 |
|
||
|
Viewing angle |
89/89/89/89 |
|
||
|
Display area |
940.896*529.254mm (H×V) |
|
||
|
Display ratio |
16:9 |
|
||
|
Backlight type |
E-LDE |
|
||
|
Screen brightness |
Single side 700nits/1000-3000NITS (option) Double side normally window side 2500 nits, indoor side 700 nits(potion) |
|
||
|
refresh rate |
60Hz |
|
||
|
Surface treatment |
Matte finish (Haze 1%) |
|
||
|
Supported colors |
16.7M (8-bit) |
|
||
|
Fuselage parameters |
|
|||
|
Available colors |
black |
|
||
|
Border material |
Aluminum profiles |
|
||
|
Body material |
Cold-rolled steel sheet for hardware (metal spraying) |
|
||
|
Border size |
5mm |
|
||
|
Body size |
953.5*544.5*59.5mm (excluding wall mount) |
|
||
|
Packaging size |
1080*150*677mm |
|
||
|
Wall mount bracket |
Horizontal/Vertical Universal Version |
|
||
|
Hanging hole spacing |
400*400 |
|
||
|
Packaging material |
Neutral thickened cardboard box |
|
||
|
net weight |
11.2KG |
|
||
|
Gross weight |
13.9KG |
|
||
|
Installation method |
Wall-mounted/Embedded/Hanging/Floor-mounted |
|
||
|
Display System (optional) |
|
|||
|
Motherboard |
Display Solution |
|
||
|
Support video |
MPEG1/MPEG2/MPEG4/AVI/VOB/MOV/WMV/DIVX/RM/RMVB, support super HD 2160P video |
|
||
|
Support picture |
JPG/JPEG/ PNG/BMP |
|
||
|
Timer |
Set time on/off auto |
|
||
|
Image rotate |
support 90°,180°,270° image rotate |
|
||
|
Android System (optional) |
|
|||
|
Motherboard |
RK3566/RK3576/RK3588 |
|
||
|
Operating system |
11.0/14.0/13.0 |
|
||
|
Main frequency |
1.8G HZ/2.2HZ/2.4HZ |
|
||
|
Memory |
2G/4G/8G (Optional) |
|
||
|
Storage |
32G/64G/128G(Optional) |
|
||
|
Input/output |
RJ45,HDMI out,USB*2,audio,TFcard, and option for HDMI IN |
|
||
|
Windows System (optional) |
|
|
||
|
Cpu |
I5 10th Gen/I5/I7 (optional) |
|
|
|
|
Operating system |
Win10/ Win11 |
|
|
|
|
Memory |
4G/8G/16G (Optional) |
|
|
|
|
Storage |
128/256G /512G/1T SSD (Optional) |
|
|
|
|
Input/output |
RJ45,HDMI out,USB2.0,USB3.0,audio |
|
|
|
|
System Functions |
|
|
||
|
Language selection |
Supports English, Chinese, and multiple languages. |
|
||
|
Video Decoding |
Highest support2160PVideo and image decoding and playback |
|
||
|
Power-on method |
Automatic start upon power-on, remote control on/off |
|
||
|
Signal recognition |
Automatically identify signal input source |
|
||
|
hibernation function |
Automatically enters sleep mode when no signal input. |
|
||
|
Idle animation |
Customizable standby screen |
|
||
|
Boot screen |
Customizable boot timeLOGO |
|
||
|
Remote control function |
Supports remote control operation |
|
||
|
USBFunction |
upgrade/Multimedia playback |
|
|
|
|
Audio function |
Built-in two high-quality tweeters |
|
|
|
|
screen rotation |
Follow the display orientation of the input host. |
|
|
|
|
Video support |
480P, 480p, 576P, 576p, 720p, 1080P, 1080p, 4Kx2K@60Hz |
|
|
|
|
Electrical performance |
|
|
||
|
Rated voltage |
AC110-220V |
|
|
|
|
standby power |
≤1W |
|
|
|
|
Rated power |
≦167W |
|
|
|
|
Operating temperature |
Temperature -20℃~70℃/humidity10%RH~90%RH |
|
|
|
|
Storage environment |
Temperature -20℃~70℃/humidity10%RH~90%RH |
|
|
|
|
Dimensions(Show separately) |
|
|
||
