JCVision Self-service Floor Standing Machine

제품 상세 정보:

원래 장소: 중국
브랜드 이름: JCVISIO
인증: CE CB ROHS FC

결제 및 배송 조건:

최소 주문 수량: 1
가격: 협상 가능
지불 조건: t/t
공급 능력: 10000https : //mao.ecer.com/index.php? r = 곱/편집#label_name
최고의 가격 접촉

상세 정보

패널 유형: IPS (BOE, CSOT, HKC) 등급 A 패널 크기: 15.6 인치 / 21.5 인치 / 23.8 인치
해결: 1920 (RGB) × 1080, FHD 보기 각도: 89/89/89/89 (유형) (CR ≥ 10)
디스플레이 스케일: 16 : 9 백라이트 유형: 주도의
디스플레이 밝기: 300 cd/m2 (Typ.) 프레임 속도: 60Hz
지원 색상: 1670만, 72% NTSC 차이: 4000 : 1 (유형) (전송)
터치 기술: 예상 용량성 기술 터치 포인트: 10 가지 효과적인 터치 포인트
터치 인터페이스: USB 표면 경도: ≥6시간
데이터 출력 방법: 좌표 출력 운영 체제: 안드로이드 / 기간

제품 설명

JCVision Self-service Desktop Machine Key Selling Points:
1. Diverse screen size options
Four specifications are available: 15.6 inches, 18.5 inches, 21.5 inches, and 23.8 inches to meet the needs of different scenarios.

The effective display area covers 344×193mm to 527×296mm, which is suitable for a variety of application scenarios.

2. High-definition display and high-quality panel
The resolution is 1920×1080 full HD, using BDE or Star A+ grade new LCD screen.

High brightness (≥50-300cd/m²), high contrast (2000:1), and wide viewing angle (178°) ensure clear and bright pictures.

6ms fast response time, support for video enhancement technologies such as 3D digital comb filtering.

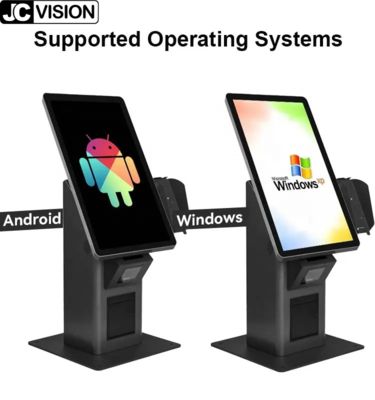

3. Dual system solution
Android version: equipped with Rockchip R5358 CPU, 4GB memory + 32GB storage, support Android 11 system.

Windows version: supports Windows 10/8/7 systems, equipped with 5.4 generation CPU, 4GB memory + 128GB storage, strong compatibility.

4. Multi-function interface and expandability
Dual USB interface (USB 2.0 for Android version, USB 3.0 for Windows version), RJ45 network port, serial port (RS232/485 optional).

Supports 4G network, WiFi, Bluetooth 4.0, and flexibly adapts to different network environments.

Supports USB/T card/network upgrade, convenient maintenance.

5. High-performance printing module (optional)
80mm thermal printer, supports full cutting/half cutting, printing speed up to 180mm/s, resolution 201dpi.

Supports QR code, barcode (Code128, PDF417, etc.) scanning, with high recognition accuracy (1D code ±5mil, QR code ±10mil).

6. High-sensitivity touch technology
10-point capacitive touch, response time 3ms, accuracy ±1.5mm, life span over 60 million times.

Full-angle anti-glare design to avoid accidental touch.

7. Durable design and environmental adaptability
Aluminum alloy frame + high-quality sheet metal structure, surface sandblasting oxidation treatment, strong impact resistance.

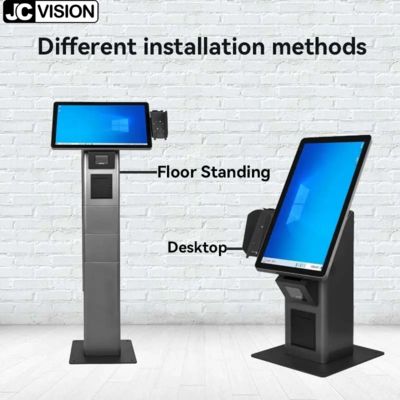

Tempered glass panel (compression resistance ≥80MPa), supports wall-mounted, vertical, desktop and other installation methods.

Wide temperature operation (-20°C~60°C), humidity adaptation 20%~80%, high stability.

8. Multimedia and intelligent functions
Stereo audio output (2×2W speakers), supports multiple formats such as MP3/WMA/FLAC.

Support contactless cards (Mifare series, NTAG, etc.), sensing distance 0~5cm.

Real-time clock (RTC) and low-power standby mode (≤1W), energy saving and environmental protection.

9. Convenient packaging and transportation
Detailed marking of net weight and gross weight of each model (such as 4kg for 15.6-inch and 7.5kg for 23.8-inch) for easy logistics planning.

Compact carton size design reduces transportation costs.

Summary

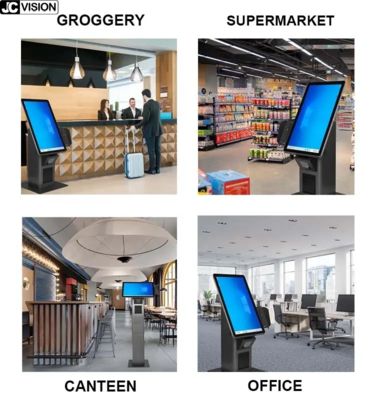

JCVision self-service terminal takes high-definition display, multi-system compatibility, and modular expansion (printing/scanning/touch) as its core advantages, combined with industrial-grade durable design and flexible deployment methods, and is suitable for self-service needs in multiple scenarios such as retail, government affairs, and medical care.
